DH connector for Isover 180mm glass wool assembly..
Manufacturer:
Isover
Availability:
Available on request
Package:
300 szt
Depth:
210.00 mm
Delivery method:
Recommended products
Product description

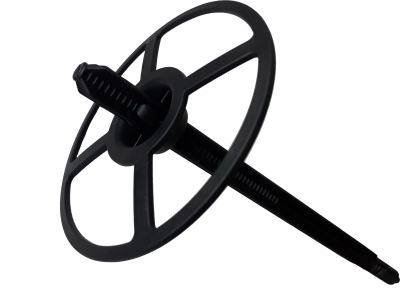

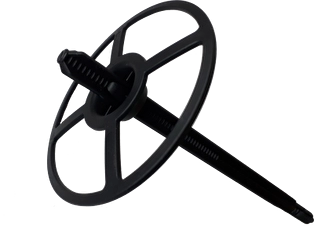

The stabilization and installation of ISOVER facade panels is ensured by a set of DH connectors, consisting of a pin and a plate. These connectors definitely facilitate and accelerate the contractor's work.
In the first step, the mandrel should be driven into the pre-drilled hole (8mm drill) and then the mounting tip should be inserted to facilitate the penetration of mineral wool. After
pressing the insulation against the structural wall is enough to put on a plate, which thanks to the rack can be perfectly flush with the surface of the plate, ensuring stability
and no veil upholstery quilting effect. When the insulation of the outer wall is to be made in two layers, just use DH mandrels with a correspondingly larger
length and use two plates.
In the first step, the mandrel should be driven into the pre-drilled hole (8mm drill) and then the mounting tip should be inserted to facilitate the penetration of mineral wool. After
pressing the insulation against the structural wall is enough to put on a plate, which thanks to the rack can be perfectly flush with the surface of the plate, ensuring stability
and no veil upholstery quilting effect. When the insulation of the outer wall is to be made in two layers, just use DH mandrels with a correspondingly larger
length and use two plates.
Main benefits
convenient assembly
practical dimensions
complete set
Product variants available
| Product No. | Thickness | Length | Width |
|---|---|---|---|
| Plate for connectors DH 101903301 | 90 | 90 | 90 |
| DH 120 mm connector 101903212 | 120 | ||
| DH 140 mm connector 101903214 | 140 | ||
| DH 160 mm connector 101903216 | 160 | ||
| DH 180 mm connector 101903218 | 180 |
€93.01
/ pcs
€114.40
/ pcs
