Injection mortar FIS HB 345 S
Manufacturer:
Fischer
Availability:
Available up to 48 hours
Product description

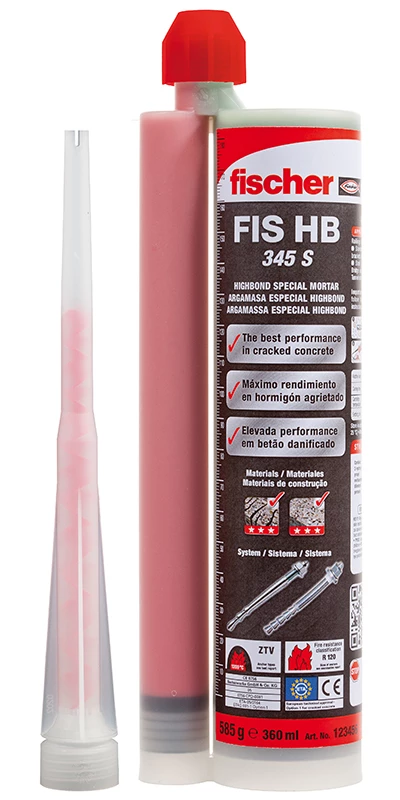

The fischer FIS HB mortar cartridge is part of the fischer Highbond FHB II system for fixing heavy elements in cracked and non-cracked concrete. The European Technical Approval ETA (Option 1) for cracked concrete and the Swiss Shock Shock Approval provide additional safety. The Highbond FHB II system allows you to securely fasten machine components and steel structures inside and outside. Special mortar can be used with Highbond FHB II-A S conical anchors (standard version), Highbond FHB II-A L (long version) anchors made of steel of different quality.
Benefits
- The Highbond FHB II anchoring system achieves the highest load resistance in cracked concrete. This means that you can use fewer attachment points and smaller anchor plates.
- FIS HB injection mortar can be used with the FHB II-A S (short version) or L (long version) threaded rod. In this way, you can choose the most economical solution depending on your requirements.
- The large shape of the ampoule with FIS HB injection mortar is perfect for series assembly.
Usage
- railings
- facades
- Stairs
- Steel brackets
- Machinery
- Silos assembly
- You have
- shelving fenders
- Steel structures
- Wooden constructions
Building Materials
Approval for:
- Concrete C20 / 25 to C50 / 60, cracked and non-cracked
Also suitable for:
- Concrete C12 / 15
* Detailed information on the subject can be found in the registration document.
Permit
- DoP No. 0019 - EN
- DoP No. 0084 - EN
- DoP No. 0085 - EN
- DoP No. 0756-CPD-0081
- DoP: 0130
functionality
- FIS HB injection mortar is intended for pre-assembly and through-assembly installation.
- The resin and hardener are placed in two separate containers and remain unmixed and inactive until they are squeezed out by the static mixer.
- FIS HB can be used with the threaded rods FHB II-A S and FHB II-A L, completely sealing the hole with the rod.
- When tightening the hex nut, the anchor and anchor cones are pulled into the mortar jacket, which rests against the hole wall during expansion.
- Styrene-free vinyl ester mortar completely seals the drill hole.
Technical data
| ETA approval | |||
| Language versions on the cartouche | DE, GB, FR, ES, NL, CS | ||
| Content | 1 360 ml cartridge, 2 x FIS MR Plus | ||
| 1 | |||
| GTIN (EAN-Code) | 4006209332115 |
Legend = Permission available
