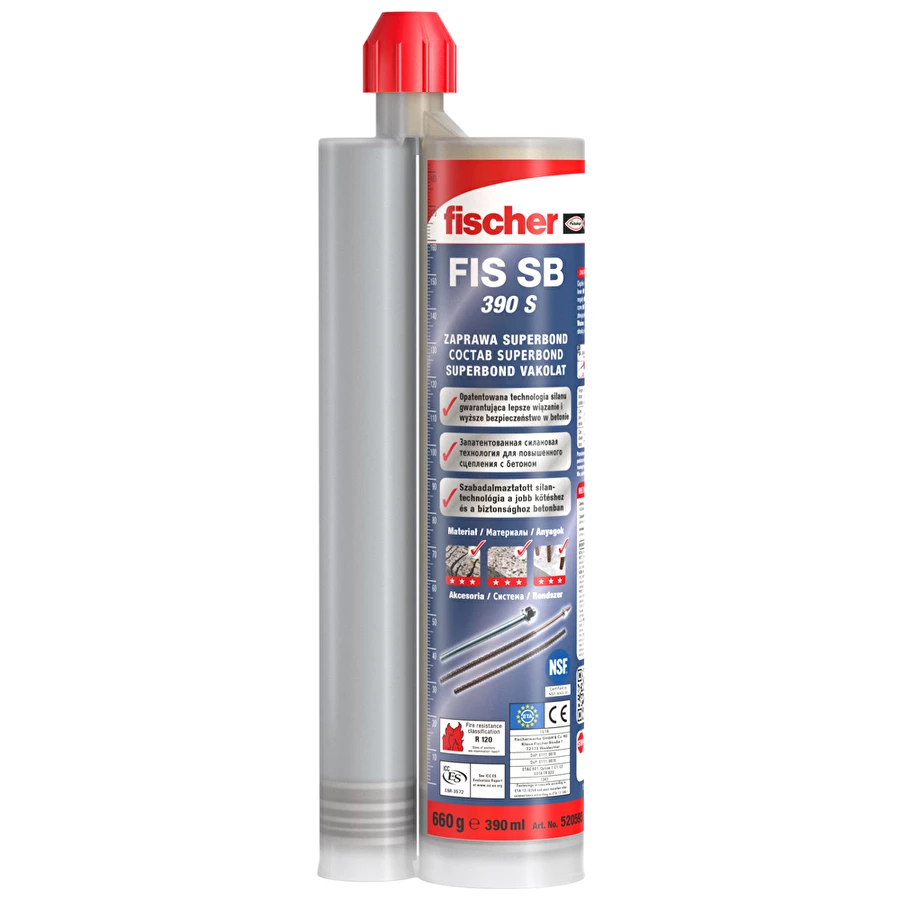

Injection mortar FIS SB 390 S
Manufacturer:
Fischer
Availability:
Available up to 48 hours
Product description
Main features
- Extremely high loads in cracked and non-cracked concrete are dissipated safely.
- Different anchoring depths optimize assembly time and material consumption.
- Fast-setting mortar.
- ETA approval for cracked concrete, also in areas of seismic activity.
The silane technology of FIS SB injection mortar ensures extremely high strength of glued bonding, and thus resistance to extremely high load levels. The European ETA approval for cracked and non-cracked concrete and the area of seismic activity offers additional fastening security. Fischer FIS SB injection mortar is intended for system components of fastening inside and outside buildings. The mortar can be used with FIS A threaded rods, RG MI internal threaded anchors and FRA reinforcement anchors, as well as reinforcing bars. Variable anchoring depths optimize assembly time and material consumption. Installation temperatures from -15 to +150 C, depending on the mortar version.
Benefits
- The FIS SB injection mortar achieves a very high level of load-bearing capacity due to its bonding strength.
- Variable anchoring depth from 4x to 20x. The threaded rod makes it possible to perfectly adapt to the occurring load, ensuring optimal assembly time and optimal material consumption.
- Maximum application temperatures up to +150 C. This opens up completely new areas of application in which glued anchors have not been used so far.
- The mortar for installation is approved for installation even at sub-zero temperatures.
- In conjunction with the internally threaded RG MI rod, the product allows disassembly and reassembly of the mounting. This ensures the highest flexibility.
Usage
- Heavy steel structures
- Silos assembly
- High storage shelves
- Acoustic walls
- railings
- Stairs
- Suspension of pipelines, cable routes and ceilings
- temporary fixings, e.g. of machines
- Scaffolding attachment
Building Materials
Approval for fixing to:
- Concrete C20 / 25 to C50 / 60, cracked and non-cracked
Also suitable for:
- Natural stone with a concise structure
* Detailed information on the subject can be found in the registration document.
Permit
- ETA-12/0258
- ETA-13/0651
- DoP No. 0011
- DoP No. 0011 - EN
- DoP No. 0070
- DoP No. 0070 - EN
- DoP No. 0111
- DoP No. 0111 - EN
- DoP No. 0756-CPD-0490
- ESR-3572
Functioning
- FIS SB injection mortar is made on the basis of hybrid vinyl esters in silane technology. The mortar is suitable for pre-installation and through installation and can be used with FIS A threaded rods or RG MI internal thread anchors.
- The resin and hardener are placed in two separate containers and remain unmixed and inactive until they are squeezed out by the static mixer.
- The mortar is squeezed without air bubbles from the bottom of the hole.
- The mortar binds the entire surface of the rod to the walls of the hole and completely closes the hole.
- For through installation, the annular gap between the rod and the fixture is filled with FIS SB injection mortar.
Technical data
| ETA approval | |||
| Language versions on the cartouche | PL, RU, HU | ||
| Content | 1 390 ml cartridge, 2 x FIS MR Plus | ||
| Content | 180 | [scale units] | |
| GTIN (EAN-Code) | 4048962169409 |
Legend = Permission available
