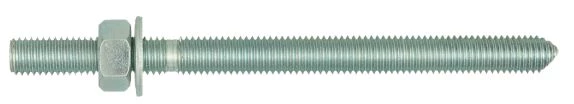

Metric threaded rod made of stainless steel R-STUDS-A4FL M12x160mm..
Product description
Size: M12x160mm
Features and Benefits:
- The rod is part of a high load anchoring system for use with an anchor glued in capsules, cartridges or in the CFS + system
- Stainless steel class A4 allows for outdoor use and in conditions exposed to weather and corrosion
- Can be used in dowel joints or wall-foundation connections. (Contact with technical advisor)
- Flat tip for quick manual installation without using a wrench
Apps:
- Satellite antennas
- Balustrades and handrails
- Protective barriers
- Beams and starting poles
- Goals, wickets, fences
- Fixtures
- Stadium chairs
- Grating
- Installation of electrical boxes, sanitary products, cable ducts, etc.
Installation instructions:
- Drill a hole of suitable diameter and depth.
- Vigorously clean the hole with a pump and brush.
- For hole substrates, place the mesh sleeve in the hole in the recommended position.
- Fill the hole with resin to the recommended level (follow the assembly instructions appropriate for the type of resin).
- Slowly insert the metric rod into the resin hole until the recommended anchoring depth is reached.
- Leave to set for the time required for application.
- Attach the fixture and tighten the nut to the required tightening torque.
€32.80
/ pcs
€40.34
/ pcs
