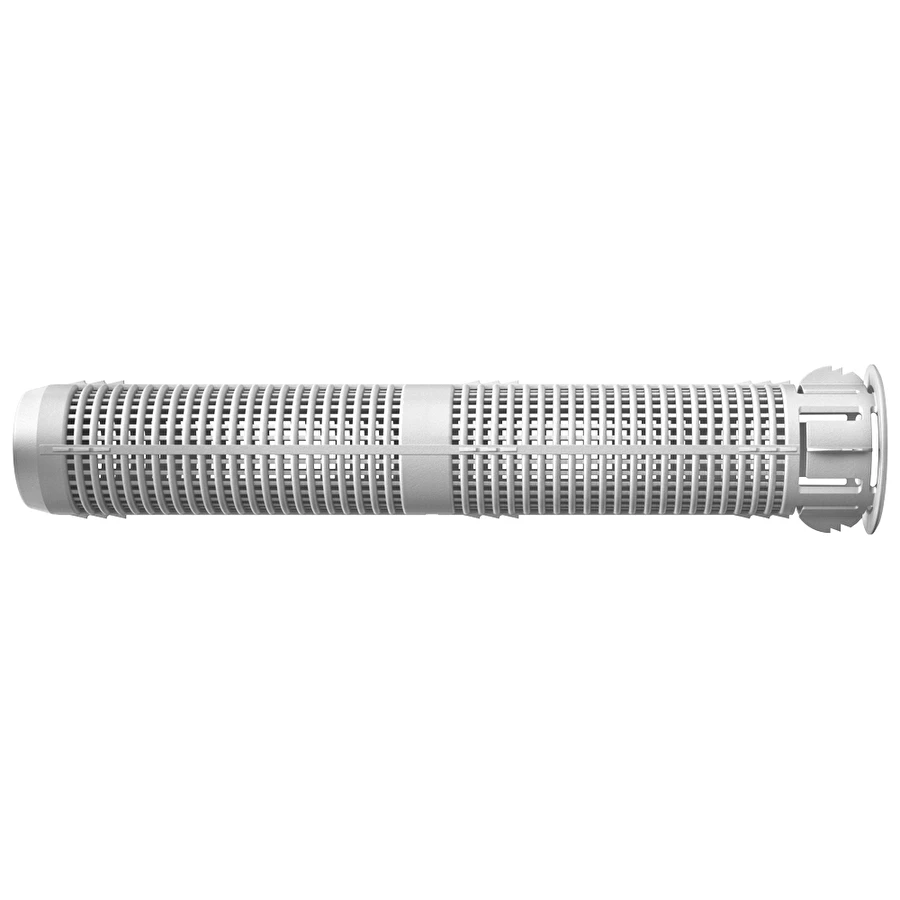

Plastic mesh bushes FIS H 16 x 85 K
Manufacturer:
Fischer
Availability:
Available up to 48 hours
Product description
The fischer FIS HK mesh sleeve for injection is a system element for professional, mortar-saving installation of FIS A anchor rods or FIS E internal threaded anchors in honeycomb brick wall. Used with FIS V, FIS VW HIGH SPEED, FIS VS LOW SPEED, FIS VL, FIS GREEN, FIS P Plus and FIS P injection mortars. The optimized mesh structure saves injection mortar. During the embedding of the threaded rod and the internal threaded anchor, the mortar is pressed through the mesh adapting to the form of the honeycomb brick. The loads are thus transferred to the ground. Embedding takes place using the pre-assembly method. The injection anchor sleeve can connect non-load bearing layers. Approval conditions for individual injection mortars apply.
Benefits
- The FIS HK mesh bushing is adapted for the use of FIS V, FIS GREEN and FIS P Plus injection mortars and ensures lower mortar consumption while maintaining a perfect fit.
- The centering wings in the mesh sleeve stabilize the anchor, allow the use of threaded rods of different diameter.
- The hook catches hold the sleeve in the hole and allow for easy installation overhead.
- The geometry of the mesh sleeve allows fusion of non-loadbearing layers of the substrate, which affects the ease and convenience of installation.
Usage
- Brick wall anchoring with FIS V, FIS VL, FIS P Plus, FIS P and FIS GREEN injection mortars
Building Materials
Approval for:
- ceramic blocks
- Lightweight hollow concrete blocks
- Concrete blocks
- silicate blocks
- full silicate blocks
- Full brick
Also suitable for:
- aerated concrete panels
- Thick-ribbed ceilings made of hollow blocks and other hollow blocks
- Full aerated concrete and other building materials
* Detailed information on the subject can be found in the registration document.
Permit
- ETA-15/0263
- DoP No. 0026
- DoP No. 0126
- DoP No. 0756-CPD-0361
Functioning
- The system can be used with any of the following injection mortars: FIS V, FIS VW HIGH SPEED, FIS VS LOW SPEED, FIS GREEN or FIS P Plus. FIS P can be used but has no official approval.
- The system is intended for pre-assembly with connection of anchor sleeves for injection mortars and FIS A threaded rods or FIS E internal threaded anchors.
- The anchor sleeve is placed in a drilled hole and filled with mortar from the base of the sleeve.
- Rotation of the anchor pushes the mortar through the mesh of the anchor sleeve, adapting perfectly to the shape of the hole in the ground. The attachment takes over the load.
Technical data
| ETA approval | |||
| Hole diameter | d 0 | 16 | [Mm] |
| min. hole depth | h 1 | 95 | [Mm] |
| min. anchorage depth | h ef | 85 | [Mm] |
| matches to | FIS A M8-M10, FIS E M6-M8 | ||
| Amount of mortar for one sleeve | 12 | [scale units] | |
| 50 | |||
| GTIN (EAN-Code) | 8001132419021 |
Legend = Permission available
