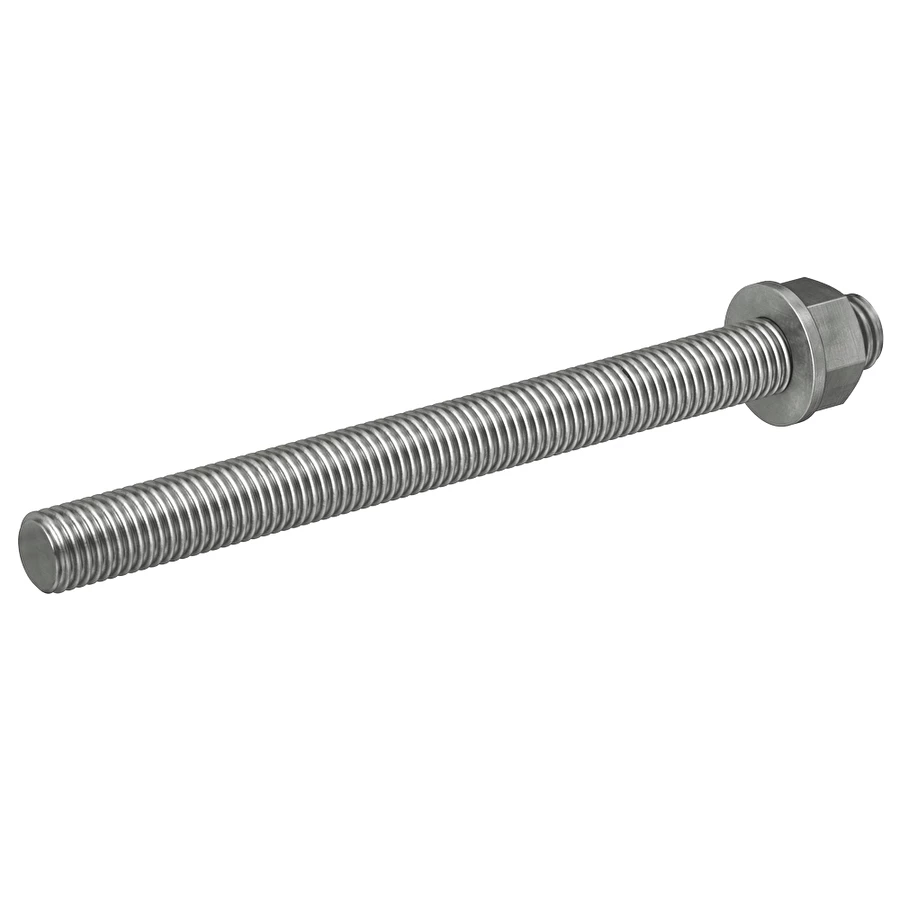

FIS AM 8 x 90 A4 threaded rod

Manufacturer: Fischer
Availability: Available up to 48 hours
Delivery method:
See other variants
Manufacturer: Fischer
Availability: Available up to 48 hours

Product description

Main features
  • The universal solution for use with various fischer injection mortars. Easy product selection and simplified storage.
  • Approved for anchoring in cracked and non-cracked concrete, solid masonry, honeycomb masonry and aerated concrete in combination with various fischer injection mortars.
  • Optimal adaptation to loads due to variable anchoring depth. This reduces assembly and material costs.
The fischer FIS A threaded rod is made of galvanized steel class 5.8. The threaded rod is a system element for various fischer injection mortars. In combination with injection mortars, fischer threaded rods are suitable and approved for all substrates. It is recommended to clean the drill hole thoroughly to ensure maximum load capacity of the fastening system. The system, which consists of galvanized threaded rods and fischer injection mortars, is designed and approved for fixings inside dry rooms.
Benefits
  • The fastening system consists of a FIS A threaded rod or an FIS E internal threaded anchor can be joined using one of the FIS V, FIS VT or FIS P injection mortars. Depending on the joint requirements, the most suitable system can be selected.
  • The wide range of FIS A threaded rods from M6 to M30 allows their use for various applications.
Usage
  • FIS PM, FIS SB, FIS EM, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P and FIS GREEN injection mortar
Building Materials
  • In connection with fischer injection mortars, the FIS A threaded rod is approved for various building materials.
* Detailed information on the subject can be found in the registration document.

Permit

  • ETA-02/0024
  • DoP No. 0007
  • DoP No. 0007 - EN
  • DoP No. 0072
  • DoP No. 0094 - EN
  • DoP No. 0756-CPD-0301
Functioning
  • The FIS A threaded rod is designed for pre-assembly and through-fitting.
  • The FIS A rod is placed by hand by gently turning until it reaches the bottom of the drill hole.

Technical data

ETA approval
Hole diameter in the checker brick d o 12 [Mm]
Hole diameter in solid brick / block d o 10 [Mm]
d 0 10 [Mm]
Thread Ø x Length M 8 [Mm]
Length l 90 [Mm]
10
GTIN (EAN-Code) 4006209904404
Legend = Permission available
