Manufacturer: Koelner
Availability: Available up to 48 hours
Width: 300.00 mm

Product description

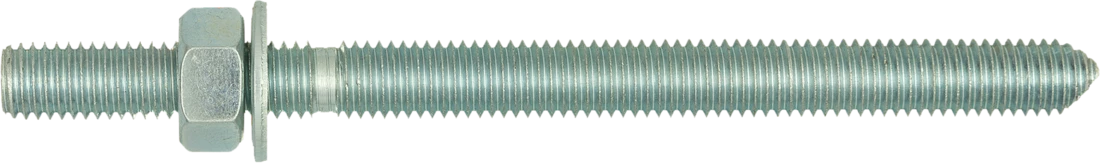

Size: M16x300mm

Features and Benefits:

  • The rod is part of a high load anchoring system for use with an anchor glued in capsules, cartridges or in the CFS + system
  • Stainless steel class A4 allows for outdoor use and in conditions exposed to weather and corrosion
  • Can be used in dowel joints or wall-foundation connections. (Contact with technical advisor)
  • Hexagonal bit for key application with appropriate tightening torque

Apps:

  • Satellite antennas
  • Balustrades and handrails
  • railings
  • Protective barriers
  • Beams and starting poles
  • Goals, wickets, fences
  • Stadium chairs
  • Installation of electrical boxes, sanitary products, cable ducts, etc.
  • Road signs

Installation instructions:

Assembly instructions - R-STUDS-A4. Metric threaded rod made of stainless steel A4 - 1Assembly instructions - R-STUDS-A4. Metric threaded rod made of stainless steel A4 - 2Assembly instructions - R-STUDS-A4. Metric threaded rod made of stainless steel A4 - 3Assembly instructions - R-STUDS-A4. Metric threaded rod made of stainless steel A4 - 4Assembly instructions - R-STUDS-A4. Metric threaded rod made of stainless steel A4 - 5
  1. Drill a hole of suitable diameter and depth.
  2. Vigorously clean the hole with a pump and brush.
  3. For hole substrates, place the mesh sleeve in the hole in the recommended position.
  4. Fill the hole with resin to the recommended level (follow the assembly instructions appropriate for the type of resin).
  5. Slowly insert the metric rod into the resin hole until the recommended anchoring depth is reached.
  6. Leave to set for the time required for application.
  7. Attach the fixture and tighten the nut to the required tightening torque.
