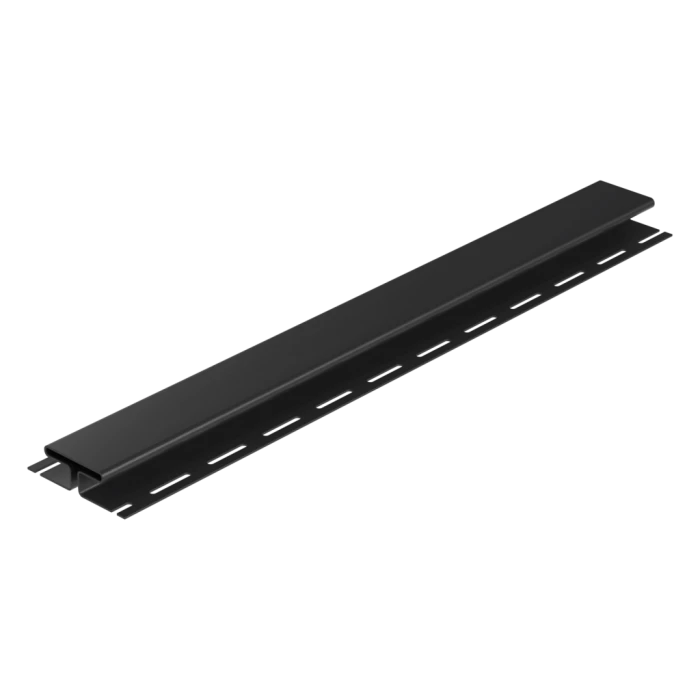

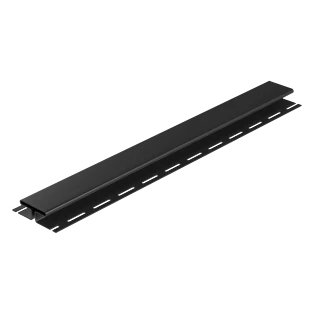

Mounting strip type "H" length 4 m Galeco
Manufacturer:
Galeco
Availability:
Available up to 48 hours
Recommended products
Product description
The highest headlining thickness on the market, stiffer panels and the so-called "Click".
Decorative siding roof lining is designed for building the eaves of the roof outside the building. Its use allows you to quickly and easily improve the aesthetics of the building.
Light weight allows installation even on delicate structures.
Aesthetics of performance
The headliner can be used for any type of roof eaves thanks to the complete assembly system.
Easy assembly
The optimal design of the headliner elements enables simple and quick installation.
Outdoor storage possible
by using protective packaging.
Weatherproof
Thanks to the use of the highest quality PVC plastic, the roof liner maintains its parameters regardless of weather conditions.
Maintenance free
Unlike wood and metal, PVC material is maintenance-free.
Flexibility and mechanical resistance
during assembly due to the use of optimal production technology.
Decorative siding roof lining is designed for building the eaves of the roof outside the building. Its use allows you to quickly and easily improve the aesthetics of the building. Light weight allows installation even on delicate structures. Weather resistance and no maintenance required guarantee ... a smile for years.
Rooflining colors
Assembly
- Galeco NOVA soffit system panels are installed perpendicular to the building wall. Installation of panels parallel to the building wall may cause bulging and deformation of the elements.
- The Galeco NOVA soffit system is installed under rafters, for wooden battens with a minimum size of 25 x 50 mm.
- Patches should be dry and impregnated, and the distance between adjacent patches should not exceed 40 cm.
- It is allowed to install the roof lining on the roofs, where, depending on the foundation of the building, it is possible to periodically expose individual panels to solar radiation.
- NOVA soffit components should not be installed in areas exposed to long-term and direct sunlight, e.g. building facade
- The roof liner should be installed at an ambient temperature above 5 ° C.
- The "J" mounting strip should be mounted to leveled battens around the entire perimeter of the built-in eaves using stainless nails with a length of min. 20 mm and head diameter min. 8 mm. The nails are driven perpendicular to the batten into the center of the mounting hole, leaving about 1 mm of clearance between the head and the strip hole to allow the thermal movement of the element. The distance between successive nails should be about 30 cm.
- The roof lining panels cut to the appropriate width are inserted into the mounted "J" type slats in a direction perpendicular to the facade. The next panel should be inserted and hooked with the lock of the previous element.
- Approximately 3 mm of clearance should be left between the panel edge and the wall of the mounting strips to allow thermal expansion of the panel.
- It is recommended to use every third panel with perforations to ensure optimal ventilation of the roof and eaves. The headlining panels should be nailed to the battens.
Sliding roof eaves up to 40 cm
Roof ejection above 40 cm
storage
- The headliner elements should always be stored in their original packaging (cartons and plastic bags).
- It is recommended to store rooflining elements under a roof.
- Elements of the system should be supported along the entire length, and the storage height should not exceed 1 m.
- The storage temperature should not exceed 50 ° C.
- Do not store the roof liner loose in places exposed to direct sunlight, as this may deform the elements.
