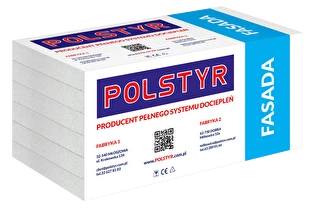

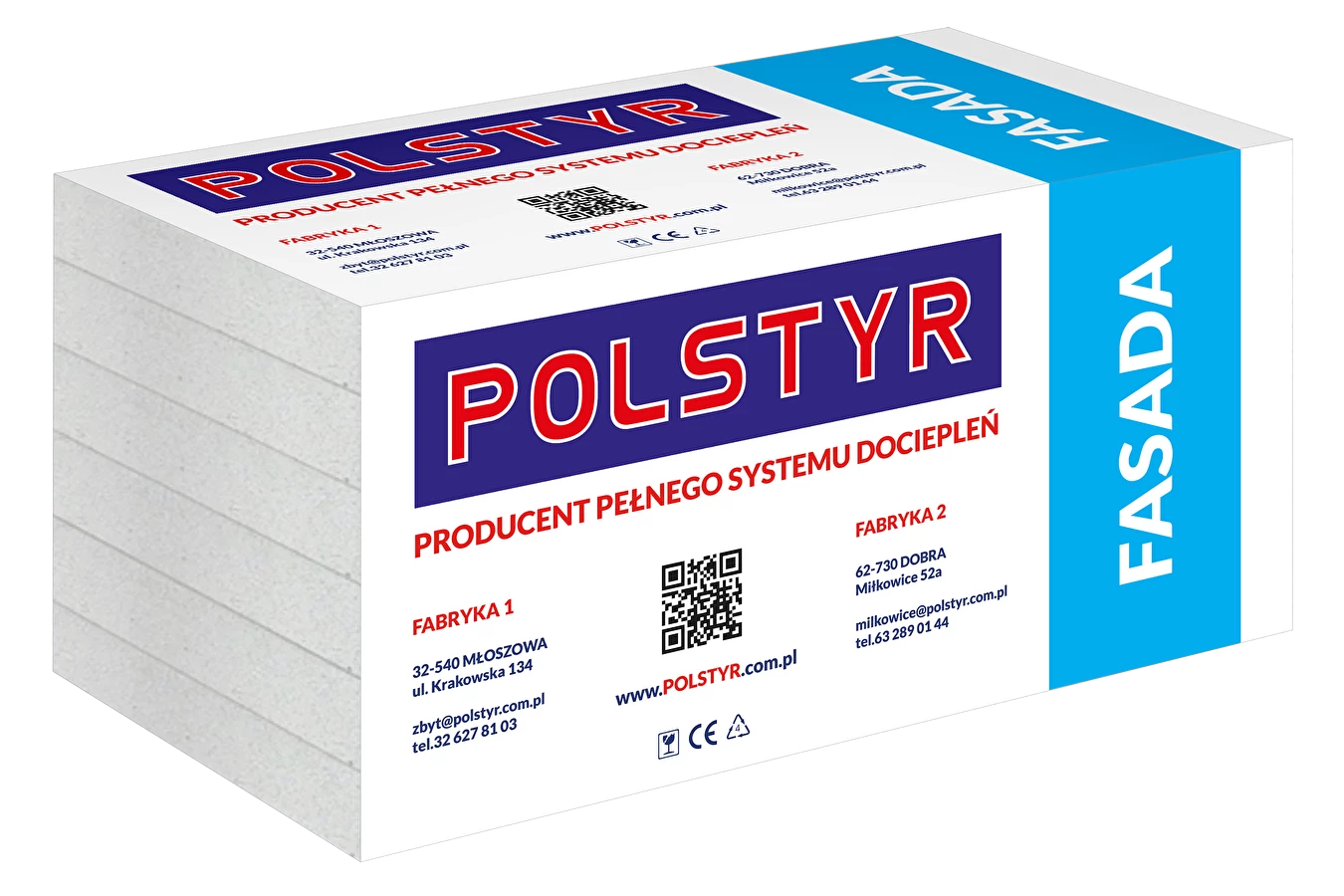

POLYESTER POLYESTER EPS 70-40 POLYSTYR 1 cm thick

Product description

Facade expanded polystyrene board. Self-extinguishing product. Product with parameters EPS 70-040. This product is used for thermal insulation and has very good thermal insulation properties.

Purpose and scope of application :

• Thermal insulation of walls with cladding elements and a ventilated air gap;
• Thermal insulation of walls in external composite insulation systems;
• Thermal insulation of wreaths made as plaster formwork;
• Thermal insulation of lintels and jambs;
• Thermal insulation of ceilings from below in external composite insulation systems;
• Thermal insulation and lost formwork of reinforced concrete floors;
• Thermal insulation under the supporting structure;
• Thermal insulation in prefabricated external sandwich panels.

parameters

The product complies with the PN-EN 13163 standard

Rectangle: ± 2/1000 [mm]

Flatness: ± 10/1000 [mm]

Flexural strength: ≥ 115 kPa

Compressive stress at 10% deformation: ≥ 70 kPa

Tensile strength perpendicular to the face: ≥ 100 kPa

Reaction to fire class: E

Thermal conductivity coefficient λD ≤ 0.040 W / mK

Thermal resistance:

DIMENSIONS AVAILABLE:
Width: 50 cm
Length: 100 cm

Thickness: 1-60 cm

straight edge it is possible to buy milled polystyrene additional 5 PLN
