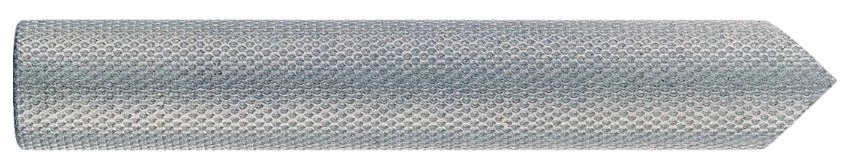

T-ITS-Z M16x125mm internal threaded bushing..

Product description

Size: M16x125mm

Features and Benefits:

• Enables multiple screw mounting in the hole
• High load capacity
• Allows for a small spacing of fasteners and the option of being used close to the edge
• It does not cause stress in the ground before fixing the element
• Available in galvanized carbon steel and stainless steel

Apps:

• Fastening threaded rods and screws
• Protective barriers
• Temporary works / scaffolding

Certified to:

• Non-cracked concrete C20 / 25-C50 / 60

Installation instructions:

1. Drill a hole of suitable diameter and depth.
2. Vigorously clean the hole with a pump and brush.
3. Fill 70% with resin (follow the assembly instructions for the type of resin).
4. Slowly insert the sleeve into the resin hole until the anchored depth is reached.
5. Leave to set for the time required for application.
6. Attach the fixture and tighten the nut to the required tightening torque.
